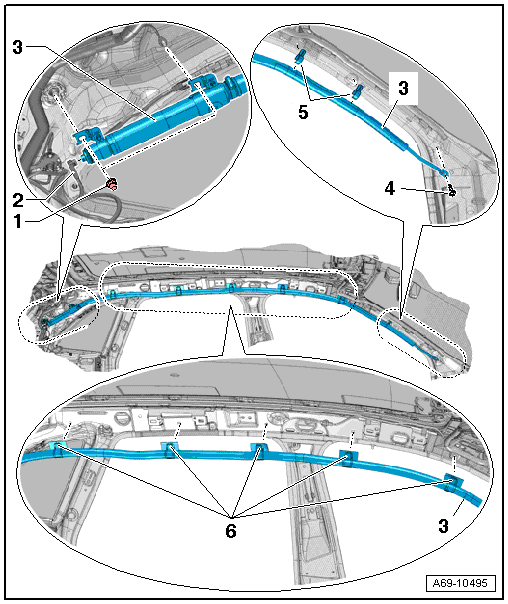

Head Curtain Airbag, Assembly Overview, Through My 2010
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 9 Nm
- Quantity: 2
- On the threaded bolts
- Connector
- Driver side for Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: for the Front Passenger Head Curtain Airbag Igniter -N252-
- Disconnecting and connecting, refer to REMOVING .
- Head Curtain Airbag
- Driver side with Driver Head Curtain Airbag Igniter -N251-
- Passenger side with Front Passenger Head Curtain Airbag Igniter -N252-WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Removing and installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Self-locking
- Always replace if removed
- Clean the threaded hole with a thread tap.
- Clip
- Quantity: 2
- If it was removed because of an accident, replace the clip
- Clip
- Removing and installing. Refer to REMOVING .
