Head Curtain Airbag With Igniter, Removing And Installing, From My 2011: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .

-- Turn on the ignition.

-- Disconnect the battery ground cable with the ignition turned on. Refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE -J367-, REMOVING AND INSTALLING / BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

-- Remove head curtain airbag bolt -3- on the A-pillar.

Fig 1: Identifying Head Curtain Airbag Bolts And Clips

Courtesy of AUDI OF AMERICA, LLC

-- Remove the head-level airbag from the clips -1- and -2-.

Fig 2: Removing Cap Nuts

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connector -1-.

-- To do this, release the connector lock -3- using a small screwdriver -1- and remove the electrical connector -2- from the head curtain airbag.

Fig 3: Identifying Releasing Connector Lock

Courtesy of AUDI OF AMERICA, LLC

-- Remove cap nuts -2- and -3-.

Fig 4: Removing Cap Nuts

Courtesy of AUDI OF AMERICA, LLC

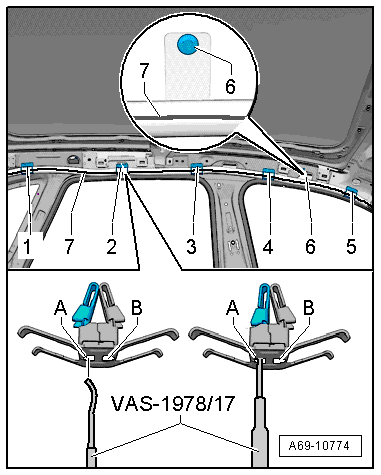

-- Detach the clip -6- and the retaining strap clips -5 through 1- for the head curtain airbag from the vehicle body. Use the "spoon" Release Tool VAS1978/17 to forcefully push the clips -5 through 1- into the opening -A- until they hit the stop, as shown in the illustration. Pull the left side of the clip out from the body. Pull the Release Tool Set - Extraction Tool 17 VAS1978/17 back out and "pay attention that the clips on the loosed side do not re-engage". Turn the Release Tool Set - Extraction Tool 17 VAS1978/17 180° and repeat the procedure for the opening -B-.

Fig 5: Removing Head Curtain Air Bag From Vehicle

Courtesy of AUDI OF AMERICA, LLC

-- Remove head curtain airbag from vehicle.
