Airbag Unit With Igniter, Removing And Installing, Bolted Airbag Version: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .

-- Move the steering wheel as far down as possible.

-- Turn on the ignition.

-- Disconnect the battery ground cable with the ignition turned on. Refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE -J367-, REMOVING AND INSTALLING / BATTERY, DISCONNECTING AND CONNECTING .

-- Turn the steering wheel so the cap -1- on the rear side of it faces upward. This is approximately the 12:00 position.

Fig 1: Cover Cap Left And Right From Backside Of Steering Wheel, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Tape off the upper trim panel for the steering column switch module in the area of the airbag threaded connection to avoid damaging the surface.

-- Pry the cap off -arrow-.

-- Remove the driver airbag bolt -arrow-.

Fig 2: Driver Airbag Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Turn the steering wheel 180° and repeat the procedure on the opposite side.

-- Bring the steering wheel back into the center (wheels are straight).

Fig 3: Bring Steering Wheel Back To Center

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the driver airbag from the steering wheel slightly.

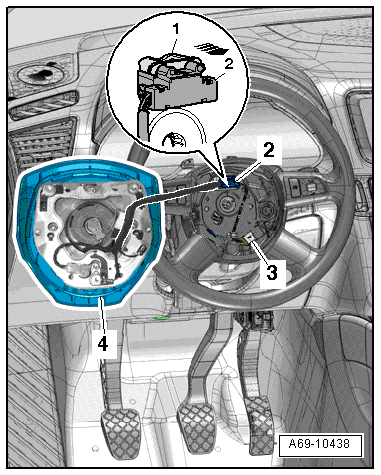

-- Pull connector lock -1- as far as stop -arrow-. This releases the electrical connector -2- and it can be removed.

-- Versions with Multi-function and Tiptronic steering wheel: Disconnect the connector -3-.

-- Remove the airbag -4-.

WARNING:

Set the airbag down so the impact cushion faces upward.
