Airbag Connector, Replacing, Bolted Airbag Version: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

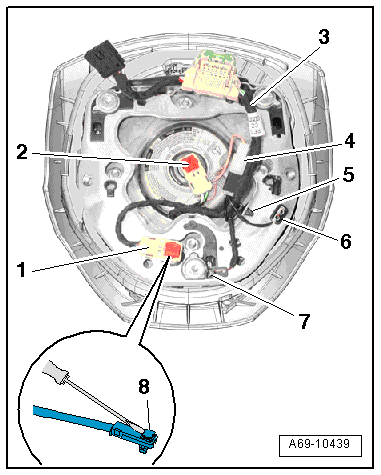

Fig 1: Identifying Airbag Connector

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .

-- Remove the driver side airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING, BOLTED AIRBAG VERSION .

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connectors -4, 6 and 7-.

-- Unlock the connector locks -8- using a small screwdriver and then disconnect the connectors -1 and 2- from the Driver Airbag Igniter -N95- and Driver Airbag Igniter 2 -N250-.

-- Disengage and remove the wire -3- on the bracket -5-.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .

-- Remove the driver side airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING, ATTACHED AIRBAG VERSION .

Vehicles with a 3-Spoke Steering Wheel:

Fig 1: Airbag Unit Harness Connector

Courtesy of AUDI OF AMERICA, LLC

WARNING:

-- Disconnect the connectors -1, 2, 4 and 6- by releasing the tabs.

-- Disconnect the connector -3- from the Driver Airbag Igniter 2 -N250- and -5- for the Driver Airbag Igniter -N95-.

-- Open the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.

Fig 2: Disconnect Harness Connector -1-, Connector Lock -2-

Courtesy of AUDI OF AMERICA, LLC

-- Unhook and remove the wiring harness from the bracket.

Versions with 4-Spoke Steering Wheel:

Fig 3: Airbag Unit Harness Connector

Courtesy of AUDI OF AMERICA, LLC

WARNING:

-- Disconnect the connectors -1, 2, 4 and 6- by releasing the tabs.

-- Disconnect the connector -3- from the Driver Airbag Igniter 2 -N250- and -5- for the Driver Airbag Igniter -N95-.

-- Open the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-.

Fig 4: Disconnect Harness Connector -1-, Connector Lock -2-

Courtesy of AUDI OF AMERICA, LLC

-- Unhook and remove the wiring harness from the bracket.
