Overview - Rear Child Seat Anchors

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The LATCH child seat anchorages are welded to the seat frame.

The top tether child seat anchor is welded to the rear seat backrest frame.

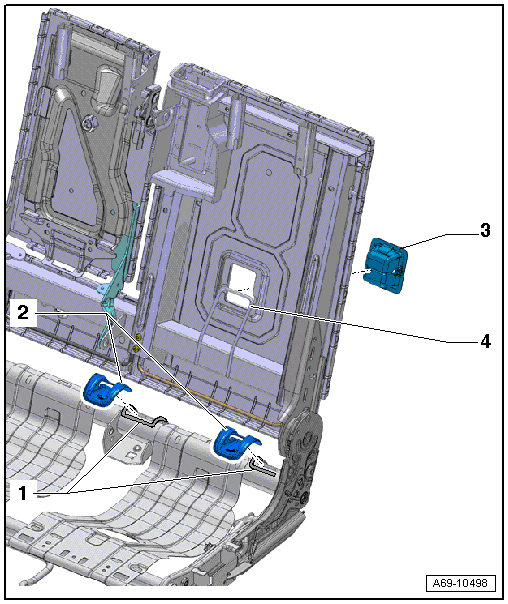

Fig 1: Overview Of Rear Child Seat Anchors

Courtesy of AUDI OF AMERICA, LLC

LATCH Child Seat Anchorage
- Welded to the seat frame
Cover
- For the LATCH child seat anchorage
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, LATCH .
Cover
- For the top tether child seat anchor
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, TOP TETHER .
Top Tether Child Seat Anchor
- Welded to the rear seat backrest frame
