Overview - Front Child Seat Anchors
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

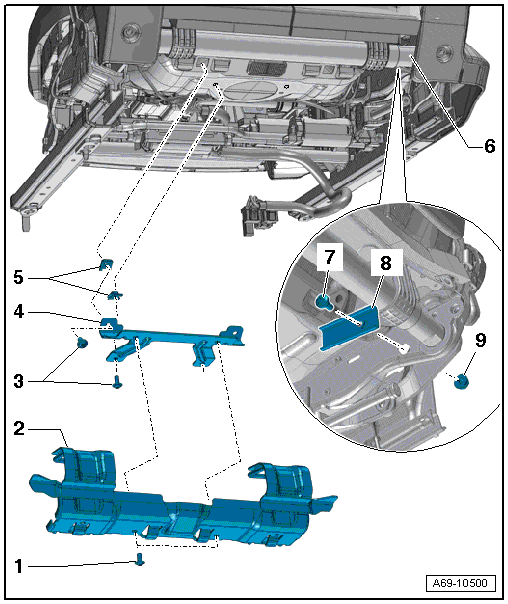

NOTE:
The seat pan is shown with the cover.
- Bolt
- 8 Nm
- Quantity: 2
- Replacing
- Insert the new bolts with Liquid Locking Fluid D 000 600 A2 (only for service)
- LATCH Child Seat Anchorage
- Passenger seat only
- Bolts with a retaining plate
- Check after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER A COLLISION .
- Replace if damaged.
- Removing and installing. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Bolts
- 8 Nm
- Quantity: 4
- Replacing
- Insert the new bolts with Liquid Locking Fluid D 000 600 A2 (only for service)
- Retaining Plate
- Passenger seat only
- Bolted with the seat pan
- Check after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER A COLLISION .
- Replace if damaged.
- Removing and installing. Refer to FRONT CHILD SEAT ANCHOR RETAINING PLATE, REMOVING AND INSTALLING .
- Spring nuts
- Quantity: 4
- Inserted in the seat pan
- replace the LATCH anchor if damaged
- Lower Seat Frame
- Bolt
- 18 Nm
- Reinforcement
- Only on power seats
- Located only on the sill side of the seat
- Check after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER A COLLISION .
- Replace if damaged.
- Removing and installing. Refer to FRONT CHILD SEAT ANCHOR REINFORCEMENT, REMOVING AND INSTALLING .
- Nut
- 18 Nm
