Driver Side Rear Side Airbag Crash Sensor -G256- / Passenger Side Rear Side Airbag Crash Sensor -G257-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .

-- Turn on the ignition.

-- Disconnect the battery ground cable with the ignition turned on. Refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE -J367-, REMOVING AND INSTALLING / BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the rear sill trim. Refer to SILL PANEL, REMOVING AND INSTALLING, REAR SILL PANEL .

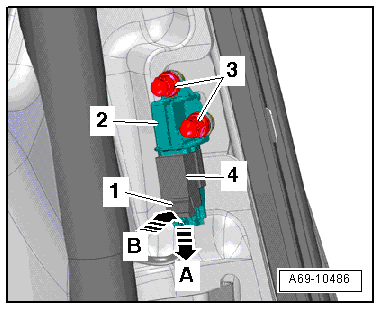

Fig 1: Removing Rear Sill Trim

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Pull the catch -1- down -arrow A- and press it -arrow B-, then disconnect the connector -4-.

-- Remove the nuts -3- and the side airbag crash sensors -2-.
