Driver Side Airbag Crash Sensor -G179- / Front Passenger Side Airbag Crash Sensor -G180-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow the safety precautions for front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
-- Turn on the ignition.
-- Disconnect the battery ground cable with the ignition turned on. Refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE -J367-, REMOVING AND INSTALLING / BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
WARNING:
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

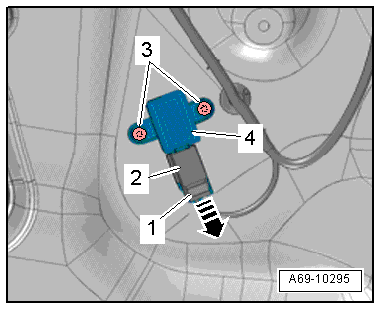

-- Pull the locking mechanism -1- down -arrow- and disconnect the connector -2-.
-- Remove the bolts -3- and the side airbag crash sensors -4-.
