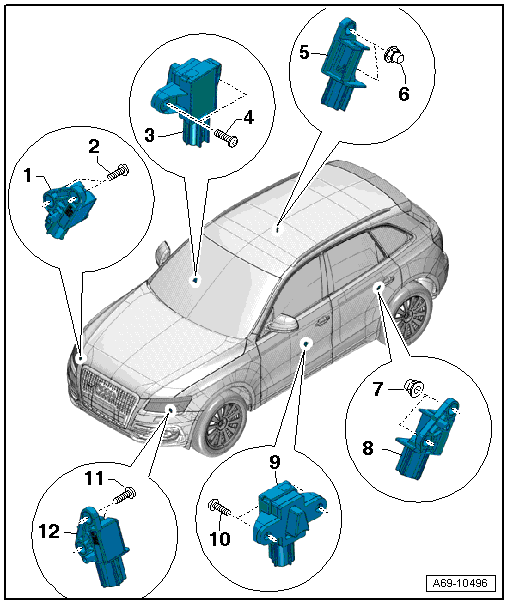

Component Location Overview - Airbag Crash Sensors
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Passenger Side Front Airbag Crash Sensor -G284-
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to DRIVER FRONT AIRBAG CRASH SENSOR -G283-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Quantity: 2
- Front Passenger Side Airbag Crash Sensor -G180-
- Component location: inside the door
- For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and installing. Refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Quantity: 2
- Passenger Side Rear Side Airbag Crash Sensor -G257-
- Installed location: on the inside of the wheel housing behind the sill panel strip.
- Removing and installing. Refer to DRIVER SIDE REAR SIDE AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR SIDE AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Nut
- 9 Nm
- Quantity: 2
- Nut
- 9 Nm
- Quantity: 2
- Driver Side Rear Side Airbag Crash Sensor -G256-
- Installed location: on the inside of the wheel housing behind the sill panel strip.
- Removing and installing. Refer to DRIVER SIDE REAR SIDE AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR SIDE AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Driver Side Airbag Crash Sensor -G179-
- Component location: inside the door
- For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and installing. Refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Quantity: 2
- Bolt
- 9 Nm
- Quantity: 2
- Driver Front Airbag Crash Sensor -G283-
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to DRIVER FRONT AIRBAG CRASH SENSOR -G283-, REMOVING AND INSTALLING .
