Headlamp Range Control Adjuster -E102-, MAKING AN ADDITIONAL CUT-OUT IN INSTRUMENT PANEL COVER

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The instrument panel cover is delivered without a cut-out for the Headlamp Range Control Adjuster -E102- on the driver side.

If the vehicle has a Headlamp Range Control Adjuster -E102- then it is necessary to make a cut-out into the instrument panel on the driver side as follows.

Procedure

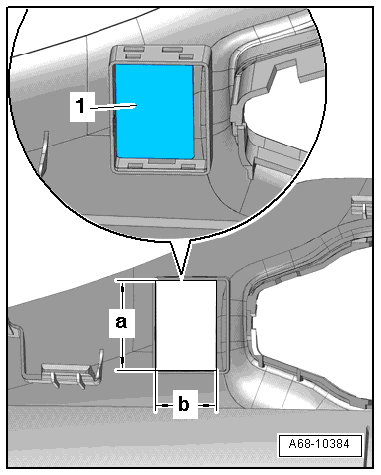

Fig 1: Identifying Headlamp Range Control Adjuster

Courtesy of AUDI OF AMERICA, LLC

-- Cut a hole for the headlamp adjuster on the marked surface -1- into the instrument panel cover on the driver side according to dimensions -a- and -b-, as illustrated.

Dimension -a- = 35.5 mm.
Dimension -b- = 23.5 mm.

-- Install the headlamp adjuster trim. Refer to Headlamp Range Control Adjuster -E102- TRIM, REMOVING AND INSTALLING .

-- Install the headlamp range control adjuster. Refer to Controls .

-- Install the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
