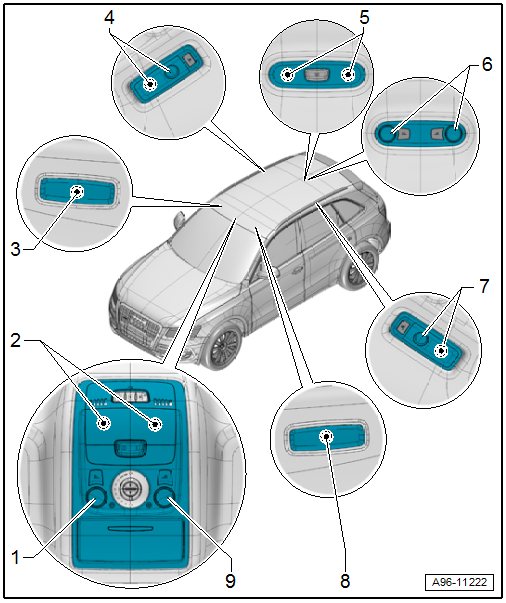

Overview - Roof Trim Panel Lamps
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Reading Lamp -W19-
- 12V, 5W
- Replacing, refer to Front Passenger Reading Lamp -W13- /Driver Reading Lamp -W19-, REPLACING .
- Front Interior Lamp -W1-
- 12V, 10W
- Replacing, refer to Front Interior Lamp -W1-, REPLACING .
- Right Vanity Mirror Illumination Bulb
- Vanity Mirror Illumination Bulb -L31-
- 12V, 5W
- Removing and installing, refer to Vanity Mirror Illumination Bulb -L31-, REMOVING AND INSTALLING
- Right Rear Interior Lamp -W48-
- For vehicles with a sunroof
- 12V, 5W
- Replacing, refer to LEFT/RIGHT REAR INTERIOR LAMP -W47- / -W48-, REPLACING, VEHICLES WITH SUNROOF .
- Rear Interior Lamp
- For vehicles without a sunroof
- 12V, 5W
- Left Rear Interior Lamp -W47-
- Right Rear Interior Lamp -W48-
- Replacing, refer to LEFT/RIGHT REAR INTERIOR LAMP -W47- / -W48-, REPLACING, VEHICLES WITHOUT SUNROOF .
- Interior Lamp/Rear Reading Lamp
- For vehicles without a sunroof
- 12V, 5W
- Left Rear Interior Lamp -W47-
- Right Rear Interior Lamp -W48-
- Replacing, refer to LEFT/RIGHT REAR INTERIOR LAMP -W47- / -W48-, REPLACING, VEHICLES WITHOUT SUNROOF .
- Left Rear Interior Lamp -W47-
- For vehicles with a sunroof
- 12V, 5W
- Replacing, refer to LEFT/RIGHT REAR INTERIOR LAMP -W47- / -W48-, REPLACING, VEHICLES WITH SUNROOF .
- Left Vanity Mirror Illumination Bulb
- Vanity Mirror Illumination Bulb -L31-
- 12V, 5W
- Removing and installing, refer to Vanity Mirror Illumination Bulb -L31-, REMOVING AND INSTALLING
- Front Passenger Reading Lamp -W13-
- 12V, 5W
- Replacing, refer to Front Passenger Reading Lamp -W13- /Driver Reading Lamp -W19-, REPLACING .
