Overview - Instrument Panel Lamps

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

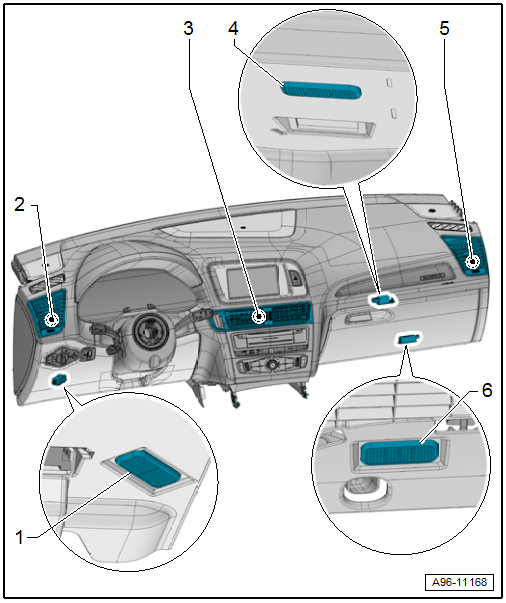

Fig 1: Overview Of Instrument Panel Lamp Locations

Courtesy of AUDI OF AMERICA, LLC

Left Front Footwell Illumination Bulb -L151-
- Removing and installing, refer to LEFT/RIGHT FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-, REMOVING AND INSTALLING
Left Instrument Panel Vent Illumination Bulb -L67-
- Removing and installing, refer to LEFT/RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB -L67- / -L69-, REMOVING AND INSTALLING .
Center Instrument Panel Vent Illumination Bulb -L68-
- Integrated in the center instrument panel vent Cannot be replaced separately if faulty.
- Center Instrument Panel Vent, removing and installing, refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, CENTER INSTRUMENT PANEL VENT .
Glove Compartment Lamp -W6-
- 12V, 5W
- Removing and installing, refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING
Right Instrument Panel Vent Illumination Bulb -L69-
- Removing and installing, refer to LEFT/RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB -L67- / -L69-, REMOVING AND INSTALLING
Right Front Footwell Illumination Bulb -L152-
- Removing and installing, refer to LEFT/RIGHT FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-, REMOVING AND INSTALLING
