Left/Right Instrument Panel Vent Illumination Bulb -L67- / -L69-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Remove the affected instrument panel vent, refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, CENTER INSTRUMENT PANEL VENT .

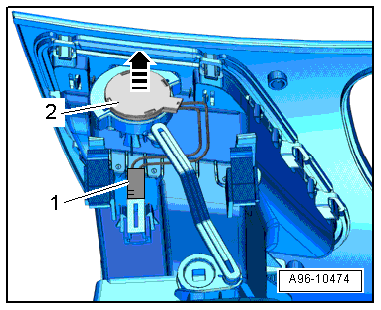

-- Release the retaining clips and remove the connector -1- on the instrument panel vent.
-- Pry the LED housing -2- upward and off using a small screwdriver -arrow-.
-- Remove the instrument panel vent LED.
