Left/Right Front FOOTWELL Illumination Bulb -L151- / -L152-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

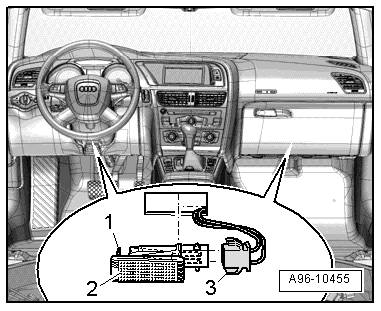

Fig 1: Identifying Front Footwell Illumination Bulb, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Using a flat-head screwdriver, press in the retaining tab -1- and pry out the footwell lamp -2-.

-- Disconnect the connector -3-.
