Socket Illumination Bulb -L42- REMOVING AND INSTALLING, 12 V Socket -U5-: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Socket Illumination, 12V Socket Wire Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the center console, refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Unclip the wire from the bracket -arrow-.

The release tabs -2- on the Cigarette Lighter Release Tool T40148 must engage in the openings in the cigarette lighter -3- -arrow-. To do so, the threaded rod -1- must be slid downward as far as the stop.

Fig 2: Cigarette Lighter (12V Socket) And Release Tool T40148
Courtesy of AUDI OF AMERICA, LLC

-- Open the cover -1- on the 12 V socket and hold it in this position.

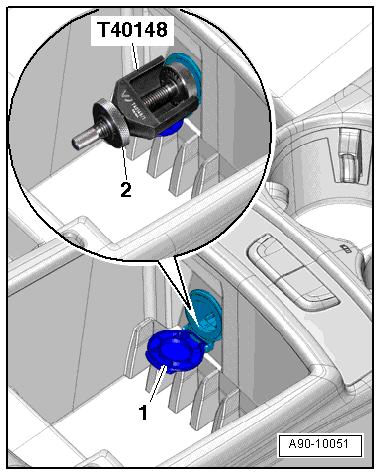

Fig 3: Removing 12V Socket With T40148

Courtesy of AUDI OF AMERICA, LLC

-- Slide the Cigarette Lighter Release Tool T40148 until it stops in the 12 V socket.

-- Rotate the thumbwheel -2- on the Cigarette Lighter Release Tool T40148 clockwise as far as the stop.

The piston -2- is pulled upward and the release tabs -1- on the Cigarette Lighter Release Tool T40148 spread -arrows-.

Fig 4: Identifying Release Tool T40148 Operation
Courtesy of AUDI OF AMERICA, LLC

-- Remove the 12 V socket from the illumination ring with the Socket Illumination Bulb -L42- using the Cigarette Lighter Release Tool T40148.

-- Disconnect the connector.

-- Release the retaining clips -arrows-.

Fig 5: Identifying Socket Illumination Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the illumination ring -1- with the Socket Illumination Bulb -L42- from the center console storage compartment -2-.
