12 V Socket 3 -U19-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Turn off the ignition and remove the key.

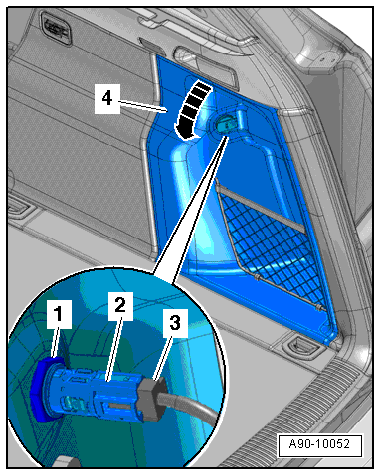

-- Open the cover -4- on the right luggage compartment side trim -arrow-.
-- Disconnect the connector -3-.
-- Remove the nut -1-.
-- Remove the 12V socket -2- from luggage compartment right side trim panel.
