Right Temperature Door Motor -V159-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn on the ignition.

-- Set the airflow direction to the instrument panel vents for both the driver and front passenger side on the Climatronic Control Module -J255- A/C display and control head.

NOTE:

In the "air to the instrument panel vents" setting, the Right Center Vent Motor -V111- -B- moves the curved washer -A- in a position in which the bolt -C- is accessible. If the Right Center Vent Motor -V111- -B- does not move the curved washer -A- into the desired position, then remove the actuator if necessary (refer to Right Center Vent Motor -V111-, REMOVING AND INSTALLING ) and move the curved washer by hand.

Fig 1: Identifying Screws -C- & -E- And Connector -D-

Courtesy of AUDI OF AMERICA, LLC

-- Move the passenger seats as far back as possible.

-- Turn off the ignition.

-- Remove the air intake housing. Refer to HEATER AND A/C UNIT AIR INTAKE HOUSING, REMOVING AND INSTALLING .

-- Mark the connector -D- (to prevent confusing it with other connectors).

-- Disconnect the connector -D-.

-- Remove the bolts -C- and -E-.

-- Loosen the pin -A- (on the actuator bracket -C-) from the toothed segment -B- (temperature door shaft) and remove the bracket -C- (with the actuator) in the direction of the -arrow-.

Fig 2: Removing/Installing Bracket -C- (With Actuator)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -A- and separate the actuator -B- from the bracket -D-.

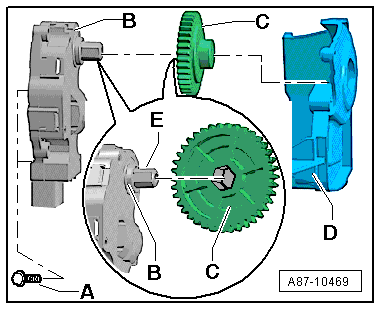

Fig 3: Identifying Screws And Control Motor From Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the toothed gear -C- from the actuator shaft -D-.
