Right Footwell Door Motor -V109-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the passenger seats as far back as possible.
-- Turn off the ignition.
-- Remove the glove compartment. Refer to Storage Compartments and Covers .
-- Remove the right footwell vent (front passenger side). Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

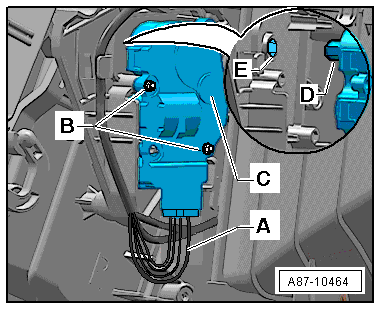

-- Mark the connector -A- if necessary (to rule out an interchange in the event several connectors are disconnected at the same time).
-- Disconnect the connector -A-.
-- Remove the bolts -B-.
-- Remove the shaft -D- of the actuator -C- from the curved washer -E-.
