Defroster Door Motor -V107-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the driver seat as far back as possible.

-- Turn off the ignition.

-- Remove the storage compartment under the instrument panel on the driver side. Refer to Storage Compartments and Covers .

-- Remove the left footwell vent (driver side). Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Remove the accelerator pedal module. Refer to OVERVIEW - ACCELERATOR PEDAL MECHANISM for CTUC, CAEB, CPMB, CPMA and CTUD, or ACCELERATOR PEDAL MECHANISM for CPNB .

-- Mark the connector -D- if necessary (to rule out an interchange in the event several connectors are disconnected at the same time).

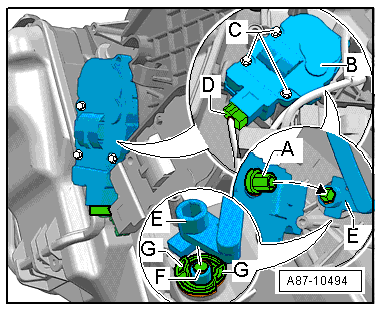

Fig 1: Marking Connector -D

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -D-.

-- Remove the bolts -C-.

NOTE:

To remove the bolt -C-, the Wrench - Special Ratchet T40083 may also be used.

-- Loosen the shaft -A- (on the actuator -B-) from the actuating arm -E- and remove the actuator.
