Airflow Door Motor -V71-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the passenger seats as far back as possible.

-- Turn off the ignition.

-- Remove the air intake housing. Refer to HEATER AND A/C UNIT AIR INTAKE HOUSING, REMOVING AND INSTALLING .

-- Remove the air intake housing from the air intake manifold. Refer to AIR INTAKE DUCT, REMOVING AND INSTALLING .

-- Remove the bolts -B-.

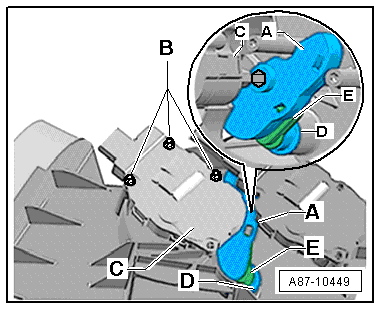

Fig 1: Counter Hold On Cam Plate And Disconnect Control Motor From Cam Plate

Courtesy of AUDI OF AMERICA, LLC

-- Counter hold on the curved washer -A- and remove the actuator -C- from the curved washer -A-.
