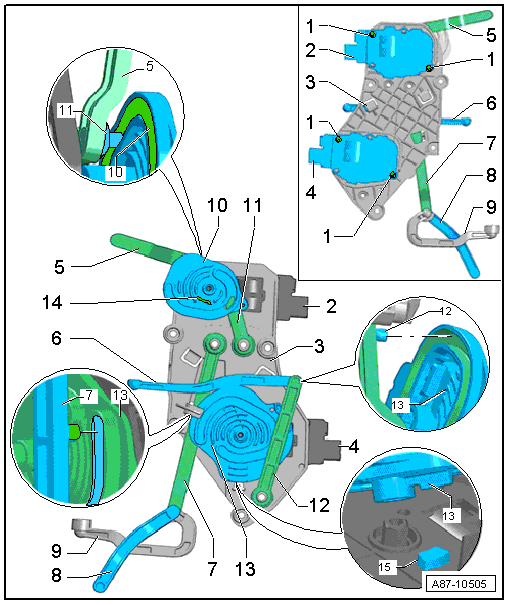

LEFT RETAINING PLATE WITH Left Footwell Door Motor -V108- AND Left Center Vent Motor -V110- DISASSEMBLING AND ASSEMBLING

The retaining plate with the Left Footwell Door Motor -V108- and the Left Center Vent Motor -V110- is only installed on vehicles equipped with the "Convenience" A/C system.

Currently in this vehicle, all actuators are identical in construction. During the basic setting, the actuators are assigned and adapted corresponding to the switching sequence of the wiring. If this sequence does not conform with the specification, the actuators will adapt incorrectly and the door control will be wrong. Refer to MAIN WIRING DIAGRAM FOR A/C SYSTEM ACTUATORS .

The actuator shaft does not have a stop; therefore the shaft of these actuators can be inserted into the curved washer in any position.

On right-hand drive vehicles, the curved washer (refer to -item  10- Curved washer) is not directly driven via the actuator shaft; on these vehicles, the curved washer is operated by two additional toothed gears. Refer to Left Center Vent Motor -V110-, REMOVING AND INSTALLING .

Depending on the production date, there are different versions of the levers and connecting elements on the A/C unit. At the start of production, the levers -A- were installed with a closed pin and the connecting rod -B-. In MY 2008, the levers -C- have a slotted pin and connecting rod -D-. When replacing, be sure to use the correct version. .

Fig 1: Air Conditioner, Levers And Connecting Elements

Courtesy of AUDI OF AMERICA, LLC
