Overview - Sill And Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Sill Panel Trim

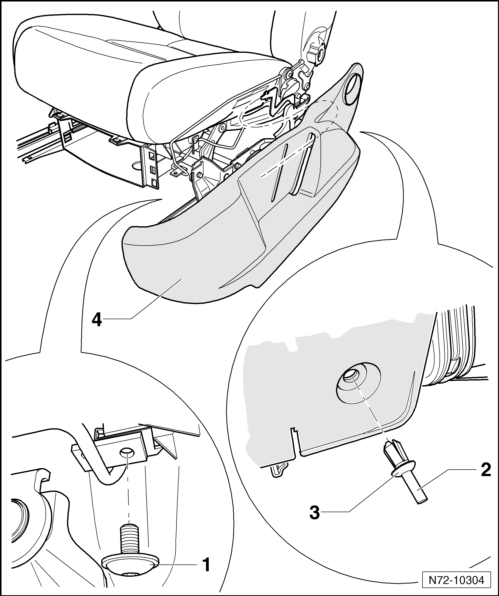

Fig 1: Overview Of Sill And Tunnel Side Trim, Standard Seat, Comfort Seat, Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 8 Nm
Clamping Pin
Expanding Clip
Seat Side Sill Panel Trim
- Can be replaced with seat installed
- Removing and installing. Refer to SILL SIDE TRIM, REMOVING AND INSTALLING, STANDARD/SPORT MANUAL SEATS .

Sill Panel Trim Bracket Version 1

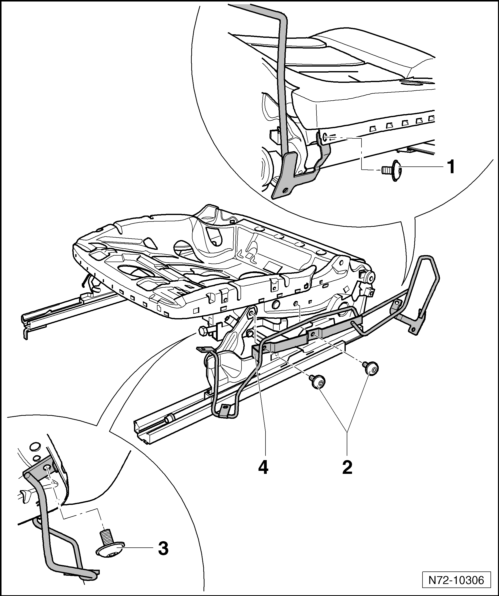

Fig 2: Identifying Bolts -1 To 3- And Bracket -4-

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 8 Nm
Bolts
- 8 Nm
Bolt
- 8 Nm
Retaining Bracket
- For seat side sill panel trim
- Removing and installing. Refer to SILL SIDE TRIM, REMOVING AND INSTALLING, STANDARD/SPORT MANUAL SEATS .

Seat Side Sill Panel Trim Bracket Version 2

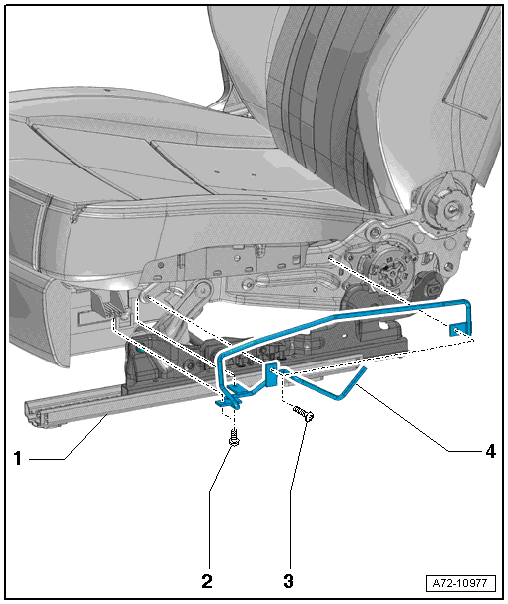

Fig 3: Identifying Sill Side Trim Retaining Bracket

Courtesy of AUDI OF AMERICA, LLC

Front Seat
- Manual
Bolt
- 8 Nm
- Quantity: 2
Bolt
- 8 Nm
- Quantity: 2
Retaining Bracket
- For seat side sill panel trim
- Removing and installing. Refer to SILL SIDE TRIM, REMOVING AND INSTALLING, STANDARD/SPORT MANUAL SEATS .

Seat Side Trim on the Tunnel Side

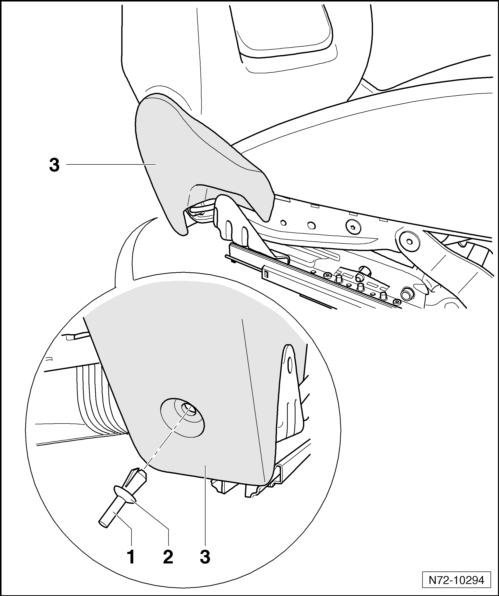

Fig 4: Identifying Clamping Pin -1-, Expanding Clip -2- And Trim -3-

Courtesy of AUDI OF AMERICA, LLC

Clamping Pin
Expanding Clip
Seat Side Trim on the Tunnel Side
- Can be replaced only with the seat removed
- Removing and installing. Refer to TRIM, REMOVING AND INSTALLING, TUNNEL-SIDE .
