Overview - Sill And Tunnel Side Trim, Front Passenger Side Folding Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

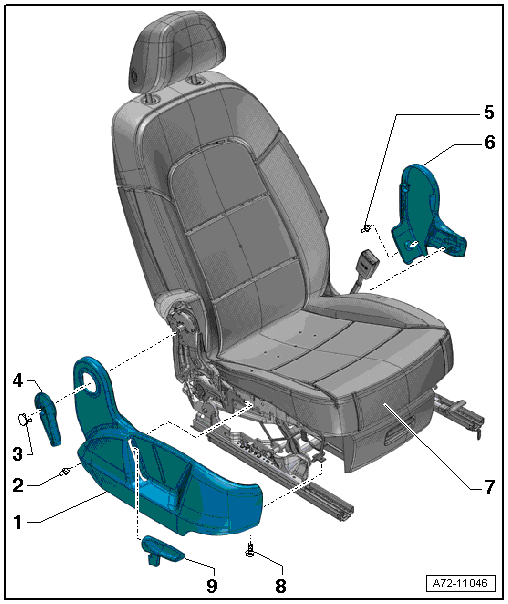

Fig 1: Overview Of Sill And Tunnel Side Trim, Front Passenger Side Folding Seat

Courtesy of AUDI OF AMERICA, LLC

Seat Side Sill Panel Trim
- Can be replaced with seat installed
- Removing and installing. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE FOLDING SEAT .
Expanding Clip
Cap
Release Handle
- For the backrest
- Removing and installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING .
Expanding Clip
Seat Side Trim on the Tunnel Side
- Can be replaced only with the seat removed
- Removing and installing. Refer to TRIM, REMOVING AND INSTALLING, TUNNEL-SIDE .
Front Folding Seat
- Passenger seat only
Bolt
- 8 Nm
Seat Height Adjustment Handle
- Removing and installing. Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
