Lumbar Support Adjustment Motors -V125- / -V126- / -V129- / -V130-, Removing And Installing: Removing
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Turn on the ignition.
-- Disconnect the battery ground cable with the ignition turned on. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture VAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .
-- Remove the headrests. Refer to HEADREST, REMOVING AND INSTALLING .
-- Remove cover with upholstery. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING, STANDARD, COMFORT, SPORT SEAT .
Lay plastic film between the seat pan cover and the backrest frame to protect against metal shavings.
Danger of eye injury.
- Wear protective eyewear.
-- Drill out rivet -2-.
-- Disconnect electrical harness connectors -1- and -3- at the lumbar support curvature and height adjustment motors.

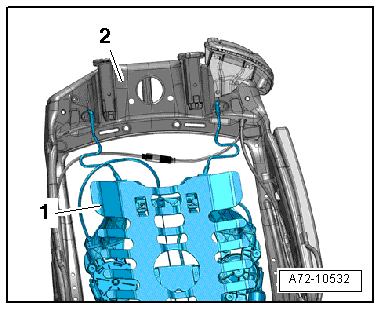

-- Free up the electrical wiring harness at the four-way lumbar support -1-.
-- Disengage and remove the 4-way lumbar support on the backrest frame -2-.
