Charge Air Cooler, Removing And Installing: Removing

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the bolts -1 and 2- and remove the bumper cover noise insulation toward the rear.

Fig 1: Identifying Bolts & Front Bumper Cover End Plate

Courtesy of AUDI OF AMERICA, LLC

-- Release the clamps in direction of -A arrows- and remove the air intake grille -1- at the left and right from the lower section of the bumper cover in direction of -arrow B-.

Fig 2: Release Clamps Arrows And Remove Air Intake Grille

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs in direction of -A arrows- and tilt the left and right air ducts -1- toward the center of the vehicle in direction of -arrow B-.

Fig 3: Locating Left & Right Air Duct Tabs

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air guide hose from the charge air cooler by loosening the hose clamp -arrow-.

Fig 4: Identifying Air Guide Hose Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

-- Remove the air guide hose from the charge air cooler by loosening the hose clamp -1-.

-- Push the lock downward in dirrection of -arrow A- and move the charge air cooler upward slightly in direction of -arrow B-.

Fig 5: Identifying Air Guide Hose

Courtesy of AUDI OF AMERICA, LLC

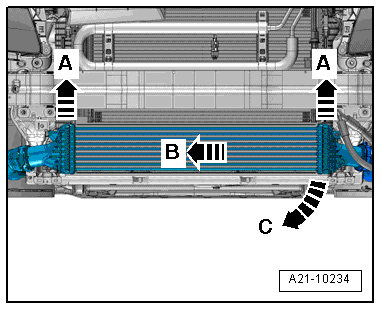

-- Remove the charge air cooler upward from the radiator in direction of -arrows A- and push it in direction of -arrow B-.

-- Remove the charge air cooler from the left side downward in direction of -arrow C-.
