Special Tools

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Polydrive Bit Drive Socket - T10070-

Courtesy of
Elbow Assembly Tool - T10118-

Courtesy of
Dial Gauge Adapter - T10170A-

Courtesy of
Counterhold - Multiple Use - T10172A

Courtesy of

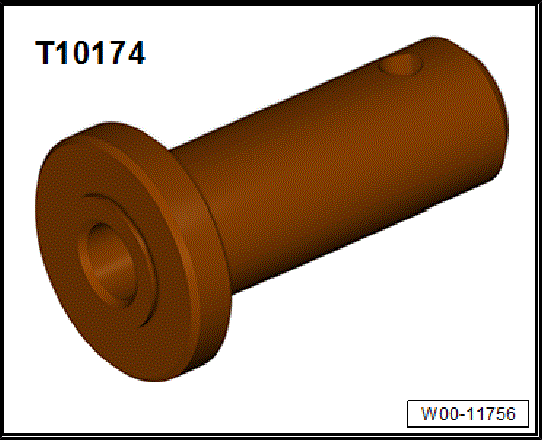

Seal Installer - Selector Shaft Oil Seal - T10174-

Courtesy of
Assembly Tool - T10352A-

Courtesy of
Seal Installer - Crankshaft - T10354-

Courtesy of
Press Piece - Gearbox - T10375-

Courtesy of
Vibration Damper Assembly Tool - Knurled Nut - T10531/4- from the Vibration Damper Assembly Tool - T10531-

Courtesy of
Locking Pin (3 pc.) - T40011-

Courtesy of
Valve Cotter Tool Kit - Adapter - T40012-

Courtesy of
Camshaft Spacer - T40191-

Courtesy of

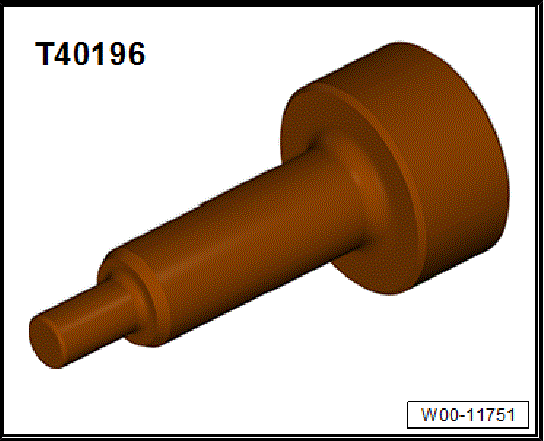

Camshaft Pins - T40196-

Courtesy of
Chain Tensioner Lever - T40243-

Courtesy of
Wrench - 21mm - T40263-

Courtesy of
Tensioner Locking Tool - T40267-

Courtesy of
Seal Installer - Crankshaft - T40274-

Courtesy of
Adapter - T40266-

Courtesy of
Camshaft Locks - T40271-

Courtesy of
Adapter - T40314-

Courtesy of
Compression Tester Kit - VAG1763-

Courtesy of
Valve Keeper Tool Kit - VAS5161A-

Courtesy of

Valve Cotter Tool Kit - Guide Plate 19C - VAS5161/19C-
Dial Gauge - 0-10mm - VAS6079-

Courtesy of

Engine and Transmission Holder - VAS6095A

Courtesy of
Engine Bung Set - VAS6122-

Courtesy of
Dial Gauge Set - VAS6341-

Courtesy of
Hose Clip Pliers - VAS6362-

Courtesy of
Cylinder Head Tensioning Device - VAS6419-

Courtesy of
Dial Indicator Holder - VW387-

Courtesy of
Spark Plug Removal Tool - 3122B-

Courtesy of
Puller - Valve Seal - 3364-

Courtesy of
Seal Installer - Valve Stem - 3365- or (depending on the version/ manufacturer of the valve stem seal)

Courtesy of
Fitting Tool - T40376/1-
