Cylinder Head, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

During installation, all cable ties must be installed at the same location.
Close the open channels from the intake and exhaust tract with suitable plugs for example from the -VAS6122-.

Preliminary work may be required depending on the model.

Coolant Hose Version 1:

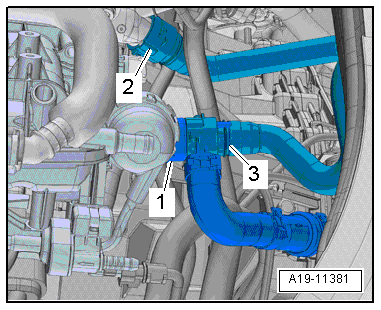

Open the clamps -1 and 2- and remove the coolant hoses.

Courtesy of

Coolant Hose Version 2:

Open the clamps -arrows- and remove the rear coolant hoses.

Courtesy of

Coolant Hose Version 3:

Lift the clips -arrows-, loosen the clamp -2- and remove the rear coolant hoses.

Courtesy of

Continuation for All Vehicles:

NOTE: Depending on the engine installed, there are different installation positions.

Disconnect the fuel line -2-. Refer to CONNECTOR COUPLINGS, SEPARATING .
Loosen the clamp -1- and disconnect the hose from the EVAP canister.

Courtesy of

NOTE:

Lay a cloth below the coolant pipe to catch escaping coolant.
Depending on the engine installed, there are different installation positions.

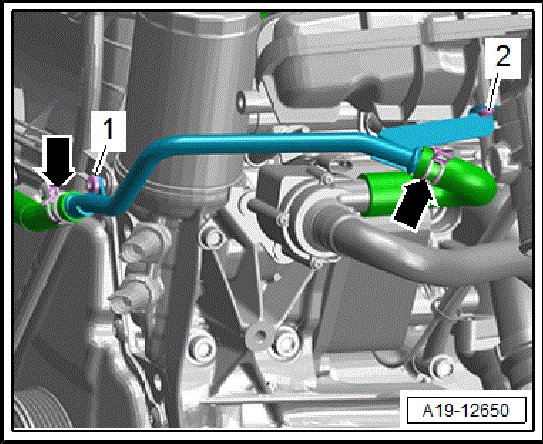

Remove the bolts -1 and 2- and move the front coolant pipe upward.
Loosen the clamp -arrow left- and remove the coolant hose.

Courtesy of

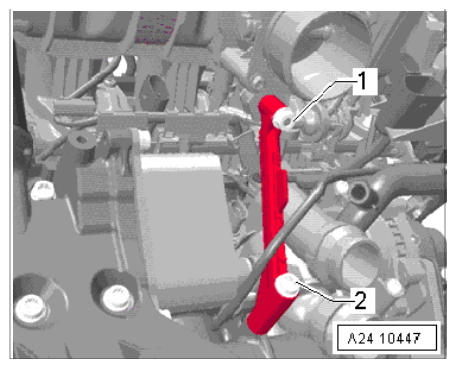

Remove the nut -1- and bolt -2- and remove the support for the intake manifold.

Courtesy of

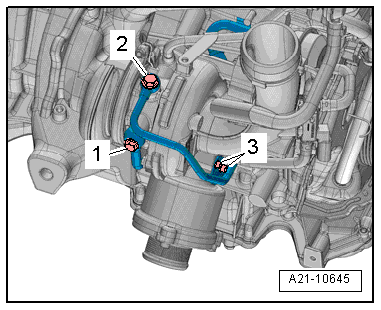

Remove the bolts -3-. (Only one bolt depending on the version)
Remove the banjo bolts -1 and 2- and move the line to the side.

Courtesy of

Disconnect the connectors -1 and 2- on the Oil Pressure Switch - F22- and Reduced Oil Pressure Switch - F378-.

Courtesy of

NOTE: Depending on the engine installed, there are different installation positions.

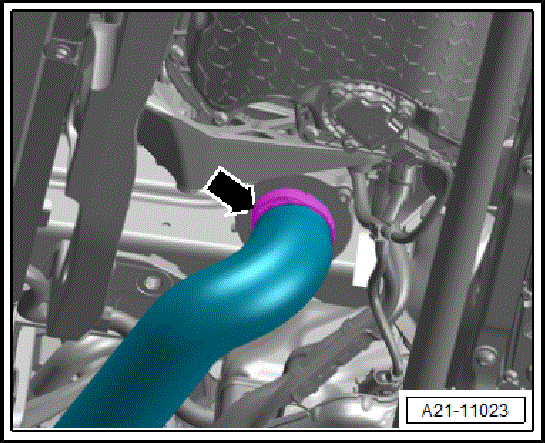

Loosen the hose clamp -arrow-, remove the air duct hose and pivot it to the side.

Courtesy of
Disconnect the connectors -1 and 2- and free up the wire.

Courtesy of

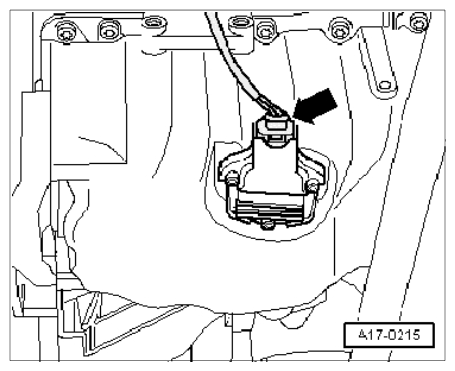

Disconnect the connector from the Oil Level Thermal Sensor - G266- -arrow- and free up the wire.

Courtesy of

Loosen the bolts -1- from above.
Remove the bolt -2- from below.

Courtesy of

Remove the bolts -arrows- on the oil return line.

Courtesy of
Remove the spark plugs with the -3122B-.

Courtesy of

Remove the bolts -arrows-.

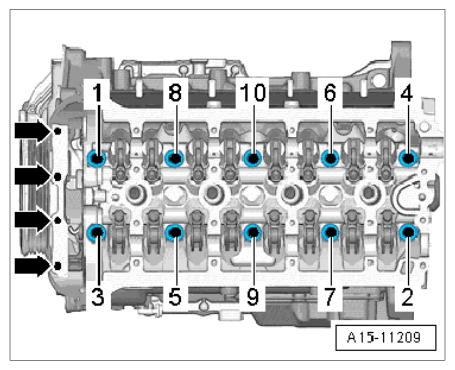

Remove the cylinder head bolts using the -T10070- or - T40270- in the sequence -1 through 10-.
- Make sure all wires and cables are disconnected.
- Pay attention to the tension and glide tracks when lifting the cylinder head.
Remove the cylinder head.
Lay the cylinder head on a soft surface, such as foam.
Seal the open channels of the intake and exhaust tract with a clean cloth or with completely clean plugs from the - VAS6122-.

Fig 1: Cylinder Head Screws Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC
