Two Different Chain Tensioners May Be Installed Depending on the Version:

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Version 1:

Install the -T40243- -arrows-.
Lift up the locking wedge for the chain tensioner by inserting a scriber or a suitable screwdriver into the chain tensioner opening in direction of -arrow 1-. Slowly press and hold the - T40243- in direction of -arrow 2-.

Courtesy of

Secure the chain tensioner using the -T40011-.

Courtesy of

Version 2:

Install the -T40243- -arrows-.
Press the chain tensioner circlip -1- together and slowly press and hold the -T40243- in the direction of -arrow-.

Courtesy of

Secure the chain tensioner with the -T40267-.

Courtesy of

All Versions:

Remove the -T40243-.
Bolt the -T40271/2- to the cylinder head and into the splines on the chain sprocket in the direction of the -arrow 2-. If necessary, turn the intake camshaft with a wrench in the direction of the -arrow 1-.

Courtesy of

With Wrench Clearance:

Courtesy of

Bolt the -T40271/1- to the cylinder head. Counterhold the camshaft with a wrench in a clockwise direction -arrow-.
Remove the bolt -A- and slide the tensioning rail down. At the same time continue counterholding the camshaft.
Turn the exhaust camshaft clockwise in the direction of -arrow- until the -T40271/1- can be slid into the chain sprocket splines.

Without Wrench Clearance:

Bolt the -T40271/1- to the cylinder head.

The help of a second technician is necessary for the following steps.

Courtesy of

Hold the exhaust camshaft securely with the -T10172A- in the direction of the -arrow A-. Remove the bolt -1- and guide the tensioning rail -2- downward.
Turn the exhaust camshaft clockwise in the direction of -arrow A- until the -T40271/1- can be pushed into the chain sprocket splines -C- in the direction of -arrow B-.

All Versions:

NOTE:

Mark the camshafts for the -T40271/1- and -T40271/2-.
When using new camshafts: transfer the self-made markings from the old camshafts to the new camshafts.
Not making the marks will result in much more work when reinstalling.

Courtesy of

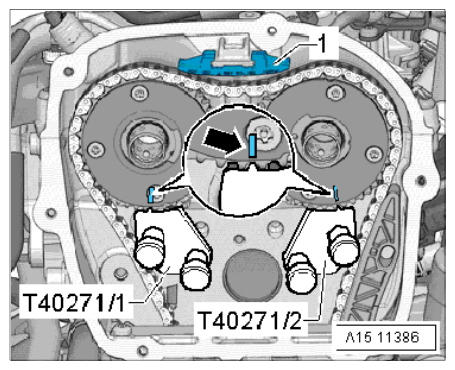

Mark the camshaft sprocket to the -T40271/1- and the - T40271/2- -arrow-.
Remove the upper guide rail -1- by unlocking the catch with a screwdriver and pushing the guide rail forward.
Remove the camshaft timing chain from chain sprockets.

NOTE: Risk of Damaging Valves and Piston Crowns

Never turn the crankshaft when the camshaft timing chain is removed.
