Camshaft Timing Chain, Removing from Camshafts: Procedure: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work may be required depending on the model. Refer to Camshaft Timing Chain, Removing from Camshafts .
- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .
TIP:
The control valves have left-hand thread.
- Depending on the version, remove the control valve in the direction of -arrow- using either the -T10352A- or -T10352/1A-.
- To do so counterhold on the vibration damper with the - T40263-, -T40314- and the 24 mm socket.
- Remove the bolts -arrows-.
- Carefully remove the bearing bracket without tilting it.
- Remove the bearing mount.
- Turn the vibration damper in the "TDC" position.
NOTE:
Risk of Damaging the Engine by the Timing Mechanism Skipping
- Only let the engine turn in the direction of engine rotation.

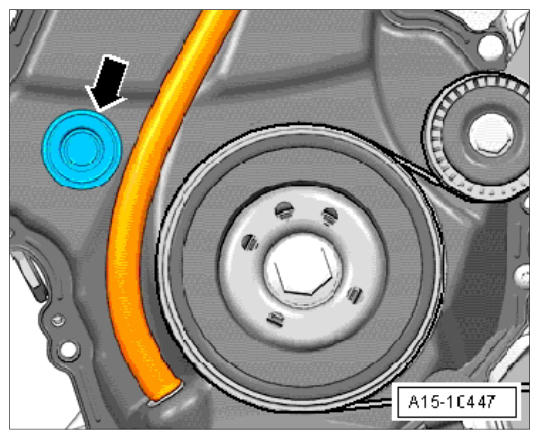

- The notch on the vibration damper and the marking on the lower cover for timing chain must be opposite one another -arrow-.
- The markings -1- on the camshaft chain sprockets must point upward.
TIP:

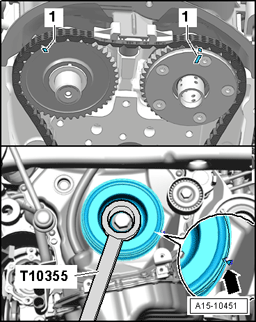

The combination of the -T40263-, - T40314- and 24 mm socket are better suited than the -T10355- for positioning the vibration damper.

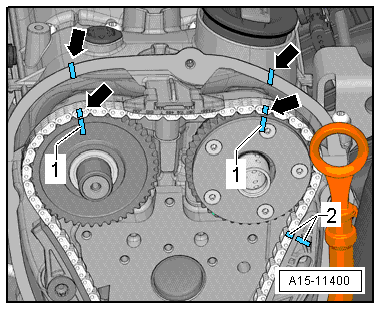

- Mark the camshaft timing chain and the cylinder head -arrows- to match the marking on the chain sprockets -1- with a waterproof marker.
- In addition, mark the camshaft timing chain to the camshaft timing chain guide rail -2- with a waterproof marker.
