Two Different Chain Tensioners May Be Installed Depending on the Version:

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Version 1:

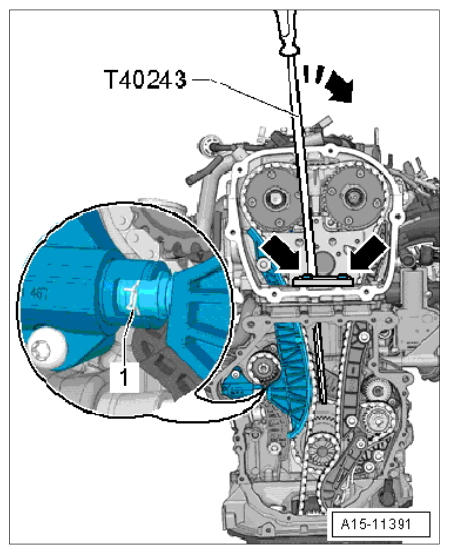

Install the -T40243- -arrows-.
Lift up the locking wedge for the chain tensioner by inserting a scriber or a suitable screwdriver into the chain tensioner opening in direction of -arrow 1-. Slowly press and hold the - T40243- in direction of -arrow 2-.

Courtesy of

TIP:

The chain tensioner is lubricated with oil and can only be pushed back slowly by applying constant pressure.

Secure the chain tensioner using the -T40011-.

Courtesy of

Version 2:

Install the -T40243- -arrows-.
Press the chain tensioner circlip -1- together and hold it.
Slowly press and hold the -T40243- in direction of -arrow-.

Courtesy of

TIP:

The chain tensioner is lubricated with oil and can only be pushed back slowly by applying constant pressure.

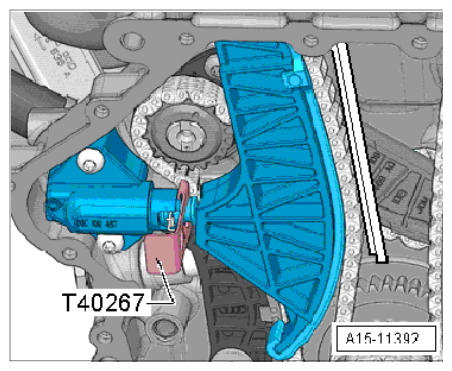

Secure the chain tensioner with the -T40267-.

Courtesy of

All Versions:

Remove the -T40243-.
Bolt the -T40271/2- to the cylinder head and into the splines on the chain sprocket in the direction of the -arrow 2-. If necessary, turn the intake camshaft with a wrench in the direction of the -arrow 1-.

Courtesy of

With Wrench Clearance:

Install the -T40271/1- on the cylinder head. Counterhold the camshaft with a wrench in a clockwise direction -arrow-.

Courtesy of

The help of a second technician is necessary for the following steps.

Remove the bolt -A- and slide the tensioning rail down. At the same time continue counterholding the camshaft.
Turn the exhaust camshaft clockwise in direction of -arrowuntil the -T40271/1- can be slid into the chain sprocket splines.

Without Wrench Clearance:

Install the -T40271/1- on the cylinder head.

The help of a second technician is necessary for the following steps.

Hold the exhaust camshaft securely with the -T10172A- in direction of -arrow A-. Remove the bolt -1- and guide the tensioning rail -2- downward.
Turn the exhaust camshaft clockwise in direction of -arrow A- until the -T40271/1- can be pushed into the chain sprocket splines -C- in direction of -arrow B-.

Courtesy of

All Versions:

Remove the upper guide rail -arrow- by unlocking the latch with a screwdriver and pushing the guide rail forward.
Remove the bolts -1- and remove the guide rail -2-.

Courtesy of
Remove the timing chain.
