Two Different Chain Tensioners May Be Installed Depending on the Version:

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Version 1:

Install the -T40243- -arrows-.
Lift up the locking wedge for the chain tensioner by inserting a scriber or a suitable screwdriver into the chain tensioner opening in direction of -arrow 1-. Slowly press and hold the - T40243- in direction of -arrow 2-.

TIP:

The chain tensioner is lubricated with oil and can only be pushed back slowly by applying constant pressure.

Secure the chain tensioner using the -T40011-.

Courtesy of

Version 2:

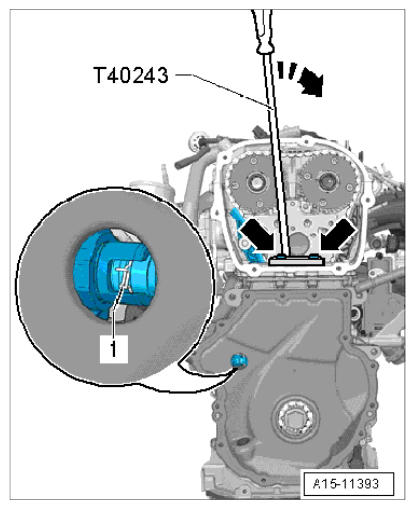

Install the -T40243- -arrows-.
Press the chain tensioner circlip -1- together and hold it.
Slowly press and hold the -T40243- in direction of -arrow-. This will push back the chain tensioner.

Courtesy of

TIP:

The chain tensioner is lubricated with oil and can only be pushed back slowly by applying constant pressure.

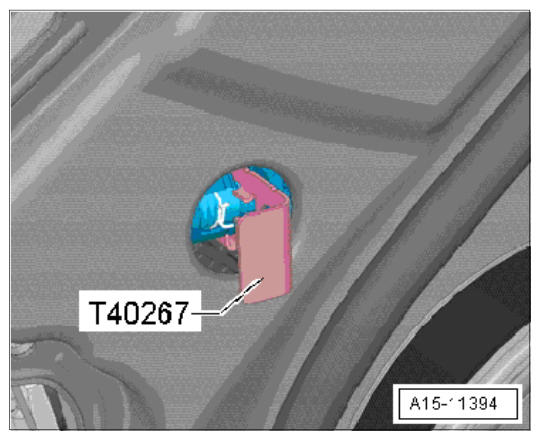

Secure the chain tensioner with the -T40267-.

All Versions:

Remove the -T40243-.
