Bearing Bracket, Removing and Installing: Removing: Notes

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work may be required depending on the model. Refer to Bearing Bracket, Removing and Installing .
Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

TIP:

The control valves have left-hand thread.

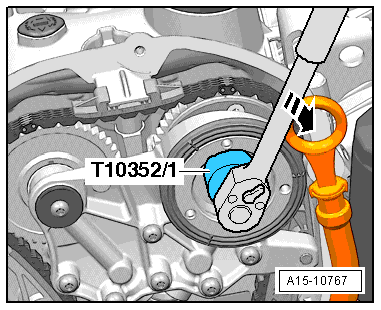

Depending on the version, remove the control valve in direction of -arrow- using either the -T10352A- or -T10352/1A-.

Courtesy of
To do so counterhold on the vibration damper with the - T40263-, -T40314- and the 24 mm socket.

Courtesy of

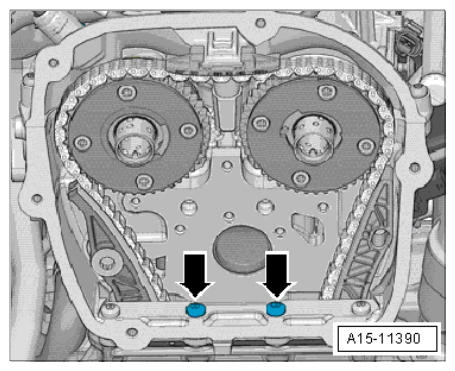

Remove the bolts -arrows-.
- Carefully remove the bearing bracket without tilting it.
Courtesy of
Remove the bearing mount.

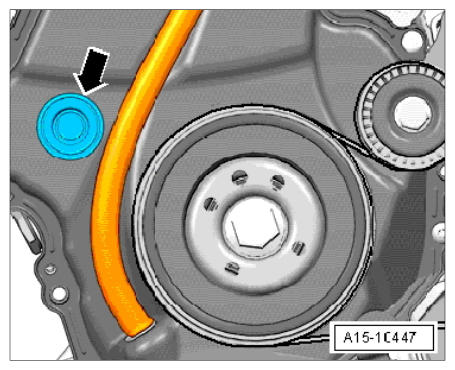

Remove the plug -arrow-.

Courtesy of
Remove the bolts -arrows-.

Courtesy of
Remove the bolt -arrow-.
