Balance Shaft Drive Chain, Removing and Installing: Removing

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft timing chain. Refer to Camshaft Timing Chain, Removing and Installing .
Remove the camshaft timing chain tensioner -3-.

Courtesy of

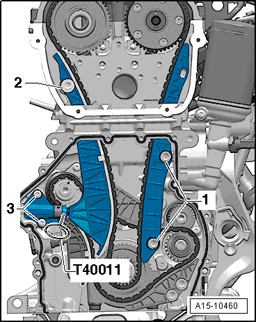

Remove the chain tensioner for the balance shaft drive chain -1-.
Remove the tensioning rail -2-.
Remove the guide rail -3-.
Remove the guide rail -4-.
Remove the timing chain.
