Balance Shaft Drive Chain, Removing and Installing: Installing

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Turn the intermediate sprocket and balance shaft to the marking -arrow-.

Courtesy of

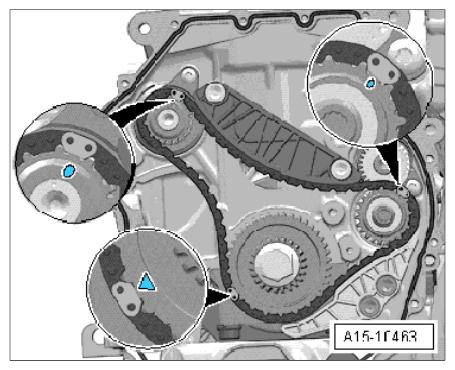

Mount the timing chain; the painted links of the timing chain must be positioned on the markings on the chain sprockets.

Courtesy of

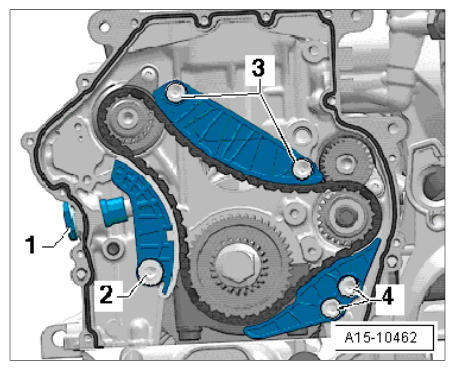

Install the timing chain guide rail and tighten the bolts -4-.
Install the timing chain guide rail and tighten the bolts -3-.
Install the timing chain tensioning rail and tighten the bolt -2-.
Coat the chain tensioner seal -1- with sealant.
Install the timing chain tensioner -1-.

Courtesy of

Check the setting one more time.
Check the markings on the intermediate sprocket/balance shaft -arrow-.

Courtesy of

NOTE: For clarity the marking on the intermediate sprocket/balance shaft is shown with the chain removed.

Courtesy of

Further installation is performed in reverse order of removal, while noting the following:

Install the camshaft timing chain. Refer to Camshaft Timing Chain, Removing and Installing .
