Ribbed Belt, Removing and Installing, Vehicles with Electro-Mechanical Power Steering: Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
- Install the ribbed belt. Refer to Ribbed Belt Routing .

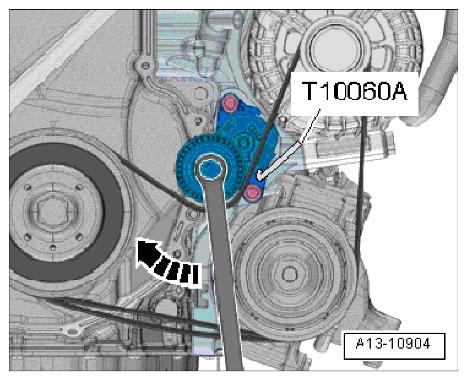

- Pivot the tensioner slightly clockwise in direction of -arrow- and remove the -T10060A-.
- Release the tension on the tensioner.
- Check whether the ribbed belt is routed correctly.
- Start the engine and check whether the ribbed belt runs correctly.
