Sub-Assembly Bracket - Tightening Specifications and Sequence
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Replace the bolts that were tightened with an additional turn after removing them.
- Mount the sub-assembly bracket and then install the bolts -4- first.
- Tighten the bolts in the steps shown in the sequence:

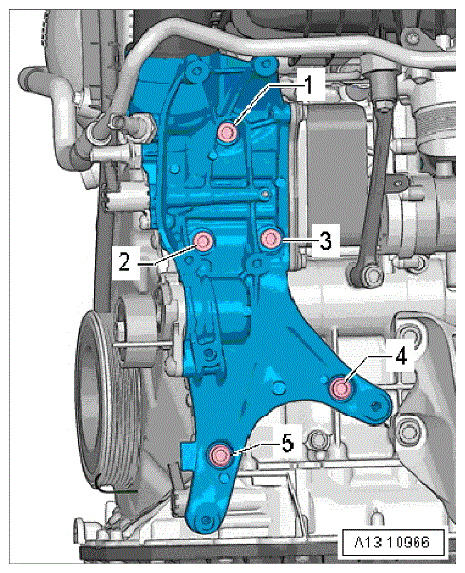

Fig 1: Cylinder Block Sub-Assembly Bracket Tightening Sequence (Belt Pulley Side, Vehicles With Electro-Mechanical Power Steering)
SUB-ASSEMBLY BRACKET - TIGHTENING SPECIFICATIONS AND SEQUENCE
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 through 5- | Install by hand all the way |
| 2. | -1 through 5- | 20 Nm |
| 3. | -1 through 5- | 90° additional turn |
