Overview - Cylinder Block, Belt Pulley Side, Hybrid Vehicles: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

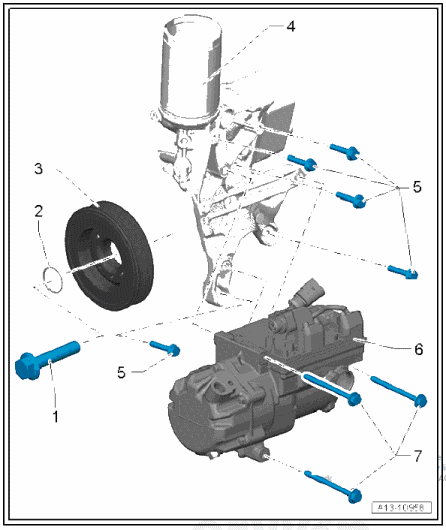

Fig 1: Cylinder Block Exploded View (Belt Pulley Side, Hybrid Vehicles)

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 150 Nm + 90°
- Always replace after removing
- Lubricate the O-ring
O-ring
- Not a replacement part; supplied with the bolt
Vibration Damper
- With the ribbed belt pulley
- Removing and installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
Sub-Assembly Bracket
- With oil filter and engine oil cooler
- Removing and installing the sub-assembly bracket. Refer to Sub-Assembly Bracket, Removing and Installing .
- Removing and installing the engine oil cooler. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .
Bolts
- Always replace after removing
- Tightening specification and sequence. Refer to Sub-Assembly Bracket - Tightening Sequence .
Electrical A/C Compressor - V470-
- Removing and installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
Electrical A/C Compressor - V470- Bolts
- There are different bolt lengths.
- Tightening specification. Refer to OVERVIEW - A/C COMPRESSOR POWER UNIT .
