Drive chain for timing mechanism, removing and installing

WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

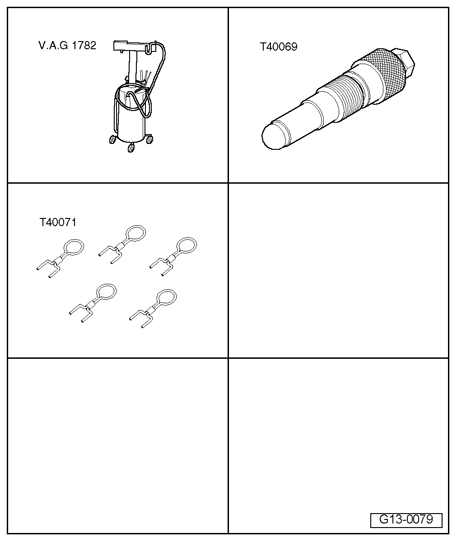

Fig 1: Identifying Special Tools - Drive Chain For Timing Mechanism, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Old oil collecting and extracting device V.A.G 1782
Locking pin T40069
Securing pin T40071

Removing

Remove transmission →
- 34 MANUAL TRANSMISSION - CONTROLS, HOUSING for 5 SPD. MANUAL TRANSMISSION 012/01W FRONT WHEEL DRIVE
- 34 MANUAL TRANSMISSION - CONTROLS, HOUSING for 5 SPD. MANUAL TRANSMISSION 01A ALL WHEEL DRIVE
- 34 MANUAL TRANSMISSION - CONTROLS, HOUSING for 6 SPD. MANUAL TRANSMISSION 01E ALL WHEEL DRIVE
- 34 - CONTROLS, HOUSING for 6 SPD. MANUAL TRANSMISSION 0A3 ALL WHEEL DRIVE, INTERNAL COMPONENT SERVICING
- 34 CONTROLS, HOUSING for 6-SPEED MANUAL TRANSMISSION 01X, FRONT-WHEEL DRIVE
- 34 CONTROLS, HOUSING for 6-SPEED MANUAL TRANSMISSION 02X, FOUR-WHEEL DRIVE
- 34 CONTROLS, HOUSING for 6-SPEED MANUAL TRANSMISSION 0A3, ALL WHEEL DRIVE
or →
- 37 - AUTOMATIC TRANSMISSION - CONTROLS, HOUSING for 5 SPD. AUTOMATIC TRANSMISSION 01V
- 37 - AUTOMATIC TRANSMISSION - CONTROLS, HOUSING for 5 SPD. AUTOMATIC TRANSMISSION 01V FRONT AND ALL WHEEL DRIVE - INTERNAL COMPONENTS, SERVICING
- 37 CONTROLS, HOUSING for AUTOMATIC TRANSMISSION 09L, FOUR-WHEEL DRIVE
.
Vehicles with manual transmission: Remove clutch pressure plate →
- 30 CLUTCH for 5 SPD. MANUAL TRANSMISSION 012/01W FRONT WHEEL DRIVE
- 30 CLUTCH for 5 SPD. MANUAL TRANSMISSION 01A ALL WHEEL DRIVE
- 30 CLUTCH for 6 SPD. MANUAL TRANSMISSION 01E ALL WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 01X, FRONT-WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 02X, FOUR-WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 0A3, ALL WHEEL DRIVE
and dual mass flywheel → Dual mass flywheel (vehicles with manual transmission), removing and installing .
Vehicles with automatic transmission: Remove drive plate → Drive plate (vehicles with automatic transmission), removing and installing .

NOTE:

After removing transmission, the engine is supported by engine support bridge 10-222 A and the torque support stop is loosened.

CAUTION: For the further sequence of work, it must be made sure that the lock carrier is installed.

To remove transmission, remove attached engine support bridge 10-222 A from engine.

Fig 2: Removing/Installing Bolts At Torque Support Stop

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tighten torque support stop to 28 Nm - arrows -.
Remove cylinder head cover: Left → Left cylinder head cover, removing and installing , right → Right cylinder head cover, removing and installing .
Remove left and right timing chain covers → Left and right timing chain covers, removing and installing .
Place old oil collecting and extracting device V.A.G 1782 under engine.

Drain engine oil.
Remove lower timing chain cover → Lower timing chain cover, removing and installing .
Remove camshaft timing chains from camshafts → Detaching timing chains from camshaft, removing and installing chain tensioner .
Remove drive chain for oil pump and balance shaft → Drive chain for oil pump and balance shaft, removing and installing .

Fig 3: Pushing Drive Chain Tensioner Guide Rail And Securing Chain Tensioner Using Securing Pin T40071

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Push drive chain tensioner guide rail in direction of - arrow - and secure chain tensioner using securing pin T40071.
Mark running direction of timing chain with paint.
Remove bolts - 2 - and - 3 - and remove chain sprockets with drive chain and glide track - 1 -.

Installing

Installation is in reverse order of removal, note the following:

Fig 4: Installing Crankshaft Holder T40069 Into Hole

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Secure crankshaft - 1 - in TDC position using crankshaft holder T40069.

Fig 5: Pushing Drive Chain Tensioner Guide Rail And Securing Chain Tensioner Using Securing Pin T40071

Courtesy of VOLKSWAGEN UNITED STATES, INC.

First, install left camshaft timing chain sprocket - 2 -.
Install guide rail - 1 - with installed drive chain.
Now install right camshaft timing chain sprocket - 3 -.
Press drive chain tensioner guide rail in direction of - arrow - and pull securing pin T40071 out of chain tensioner.

Install oil pump drive chain and balance shaft → Drive chain for oil pump and balance shaft, removing and installing .
Install camshaft timing chains Installing .
Install lower timing chain cover → Lower timing chain cover, removing and installing .
Install crankshaft seal, timing chain side → Crankshaft seal, timing chain side, replacing .

Install oil filter housing → Oil filter housing, removing and installing .
Install left and right timing chain covers → Left and right timing chain covers, removing and installing .
Install cylinder head cover: Left → Left cylinder head cover, removing and installing , right → Right cylinder head cover, removing and installing .
Vehicles with manual transmission: Install dual mass flywheel → Dual mass flywheel (vehicles with manual transmission), removing and installing and clutch pressure plate →
- 30 CLUTCH for 5 SPD. MANUAL TRANSMISSION 012/01W FRONT WHEEL DRIVE
- 30 CLUTCH for 5 SPD. MANUAL TRANSMISSION 01A ALL WHEEL DRIVE
- 30 CLUTCH for 6 SPD. MANUAL TRANSMISSION 01E ALL WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 01X, FRONT-WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 02X, FOUR-WHEEL DRIVE
- 30 CLUTCH for 6-SPEED MANUAL TRANSMISSION 0A3, ALL WHEEL DRIVE
.

Vehicles with automatic transmission: Install drive plate → Drive plate (vehicles with automatic transmission), removing and installing .
Install transmission →
- 34 MANUAL TRANSMISSION - CONTROLS, HOUSING for 5 SPD. MANUAL TRANSMISSION 012/01W FRONT WHEEL DRIVE
- 34 MANUAL TRANSMISSION - CONTROLS, HOUSING for 5 SPD. MANUAL TRANSMISSION 01A ALL WHEEL DRIVE
- 34 MANUAL TRANSMISSION - CONTROLS, HOUSING for 6 SPD. MANUAL TRANSMISSION 01E ALL WHEEL DRIVE
- 34 - CONTROLS, HOUSING for 6 SPD. MANUAL TRANSMISSION 0A3 ALL WHEEL DRIVE, INTERNAL COMPONENT SERVICING
- 34 CONTROLS, HOUSING for 6-SPEED MANUAL TRANSMISSION 01X, FRONT-WHEEL DRIVE
- 34 CONTROLS, HOUSING for 6-SPEED MANUAL TRANSMISSION 02X, FOUR-WHEEL DRIVE
- 34 CONTROLS, HOUSING for 6-SPEED MANUAL TRANSMISSION 0A3, ALL WHEEL DRIVE
or →
- 37 - AUTOMATIC TRANSMISSION - CONTROLS, HOUSING for 5 SPD. AUTOMATIC TRANSMISSION 01V
- 37 - AUTOMATIC TRANSMISSION - CONTROLS, HOUSING for 5 SPD. AUTOMATIC TRANSMISSION 01V FRONT AND ALL WHEEL DRIVE - INTERNAL COMPONENTS, SERVICING
- 37 CONTROLS, HOUSING for AUTOMATIC TRANSMISSION 09L, FOUR-WHEEL DRIVE
.
Add engine oil and check oil level → Oil level, checking .

Torque specifications

Component	Nm
Left drive sprocket to mounting bracket	6 + 60 ° ¹⁾²⁾
Right drive sprocket to cylinder block	30 + 90 ° ¹⁾³⁾
Sealing plug in cylinder block	14 ⁴⁾
¹⁾ Replace bolts. ²⁾ 60 ° corresponds to a 1/6 turn. ³⁾ 90 ° corresponds to a quarter turn. ⁴⁾ Install with new gasket.
