Ribbed Belt Pulley with Freewheel, Removing and Installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Multi-Point Socket 3400

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Multi-point adapter 3400

8 mm hex socket or TORX T50

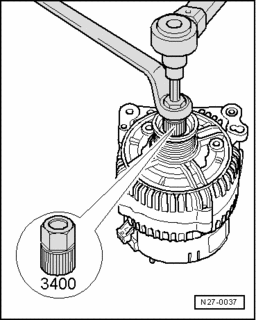

Fig 2: Locating Nut At Pulley With Wrench And Adapter 3400

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

Remove generator → 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL .

If present, press the protective cap off the generator pulley.

Counter pulley with Multi-Tooth Adapter 3400 and turn generator shaft clockwise to loosen.

Installing

Install in reverse order of removal, observing the following:

Turn the generator shaft counterclockwise to tighten.

Clip protective cap onto generator pulley.

Tightening torque

Component	Nm
Ribbed belt pulley with freewheel to generator	80
