Door safety light and entry light, removing and installing

WARNING: This page is about a different car, the 2002 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Door safety light or entry light must be removed to replace bulb.
Bulb for door safety light: 12 V, 5 W
Bulb for entry light: 12 V, 5 W

Removing

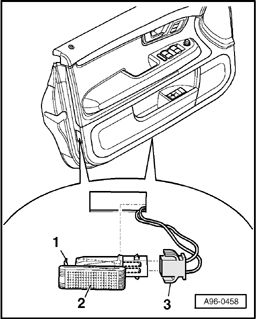

Fig 1: Identifying Door Safety/Entry Light And Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Using a flat screwdriver, press in retaining tab -1- and pry out door safety light or entry light -2-.
Unplug connector -3-.

Fig 2: Prying Off Cover On Door Safety Light

Courtesy of VOLKSWAGEN UNITED STATES, INC.

If present, carefully pry off cover on door safety light -arrow-.
Remove bulb from socket on back side of door safety light or entry light.

Installing

Installation is reverse of removal, paying attention to the following:

If present, install cover on door safety light.
Plug in connector.
Insert door safety light or entry light into opening and engage on opposite side.
