Rear heated seat regulating switches, removing and installing
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Procedure for Left Rear Heated Seat Regulating Switch E128 and Right Rear Heated Seat Regulating Switch E129 is the same.
Removing
- Remove rear ashtray.

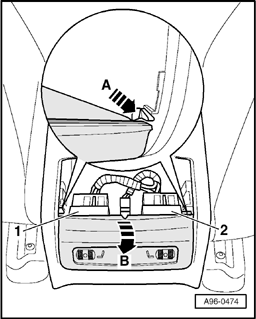

- Press retaining hooks - arrow A - on right and left outwards and swivel switch mounting to rear - arrow B -.
- Disengage switch mounting at rear center console.
- Disconnect electrical connections.
- Unclip switches - 1 - and - 2 - from switch mounting.
Installing
Install in reverse order of removal.
