Rear Lid Courtesy Lamp W51 - Avant, removing and installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Special Hook 3370

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hook 3370

Removing

Fig 2: Pulling Rear Lid Light Using Hook 3370

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully pull rear lid light in direction of - arrow - using hook 3370 as illustrated.
Disconnect electrical connection.

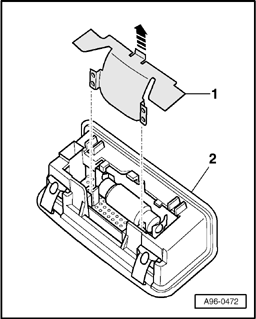

Fig 3: Pulling Reflector Out Of Rear Lid Light

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Where applicable, pull reflector - 1 - out of rear lid light - 2 -.
Remove bulb (12 V, 6 W) from holder.

Installing

Install in reverse order of removal, noting the following:

Insert rear lid light in opening and engage on opposite side.
