Left Footwell Light W9 , Right Footwell Light W10 , removing and installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

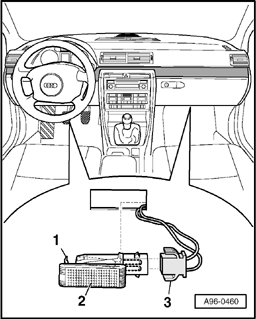

Fig 1: Identifying Retaining Tab, Footwell Light, And Electrical Connection

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Use a flat screwdriver to press in retaining tab - 1 - and pry out footwell light - 2 -.
Disconnect electrical connection - 3 -.
Remove bulb (12 V, 5 W) from holder.

Installing

Install in reverse order of removal, noting the following:

Insert footwell light in opening and engage on opposite side.
