Rear lights - Avant, assembly

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

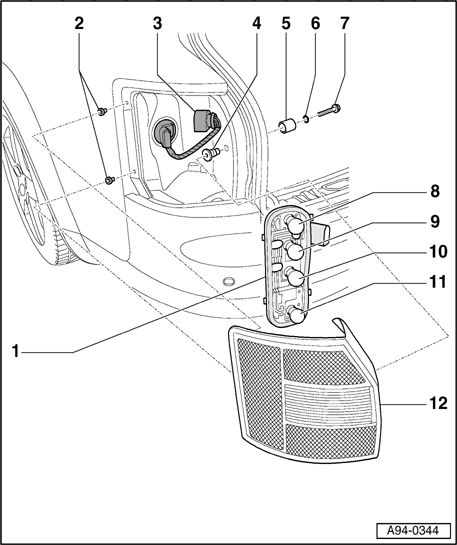

Fig 1: Rear Lights - Avant, Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bulb holder

2 - Clip nut

3 - Electrical connector

4 - Retainer

Replace if seal is damaged

5 - Nut - 12 Nm

6 - O-ring

Replace if damaged

7 - Bolt - 6 Nm

8 - Rear fog lamp bulb (where applicable)

12 V, 21 W

9 - Turn signal lamp bulb

12 V, 21 W
Orange

10 - Backup lamp bulb

12 V, 21 W

11 - Brake/taillamp bulb

12 V, 21/5 W

12 - Housing
