Rear lights in rear lid - Sedan, assembly

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

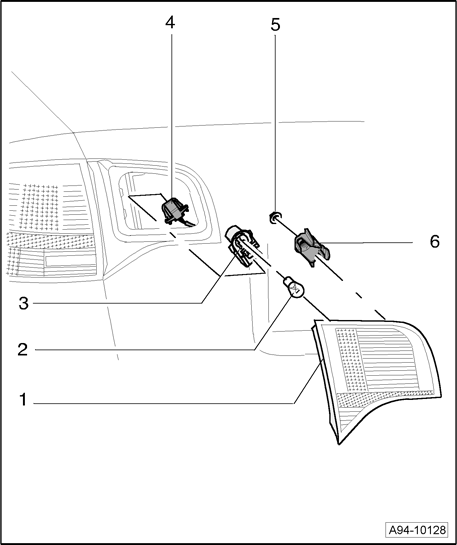

Fig 1: Rear Lights In Rear Lid - Sedan, Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Housing

Removing and installing → Rear light/bulb carrier in rear lid - Sedan, removing and installing

2 - Taillamp/rear fog lamp bulb

12 V, 21 W

3 - Bulb holder

For taillamp/rear fog lamp bulb
Removing and installing → Taillamp/rear fog lamp bulb, replacing

4 - Electrical connector

5 - Nut - 3.5 Nm

6 - Retainer

For securing housing to rear lid
