Rear light/bulb carrier in rear lid - Avant, removing and installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

Turn light switch to position "0".

CAUTION:

Switch off all electrical consumers.
Switch ignition off and remove ignition key.

Fig 1: Unclipping Plug From Luggage Compartment Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Unclip plug - 1 - from luggage compartment trim - arrow - using a small screwdriver.

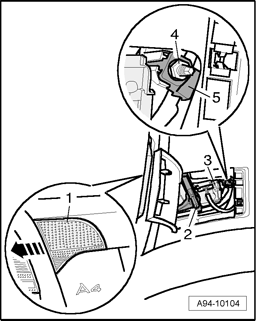

Fig 2: Identifying Nuts, Bulb Holder, And Rear Light

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove nut - 2 - and remove retainer bracket and bulb holder - 3 -.
Remove nut - 4 - and remove inner rear light - 1 - from outside in direction of - arrow -.
Pull the retainer - 5 - out of body opening.

Tightening torques

Component - fastener	Nm
Retainer to housing - nut	3.5
Retainer bracket to housing - nut	3.5
