High-mount brake lamp - Sedan, removing and installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

High-mount brake lamp is accessible from luggage compartment via panel opening below rear shelf.
Complete high-mount brake lamp must be replaced if LEDs are inoperative.

Removing

Do not press brake pedal.

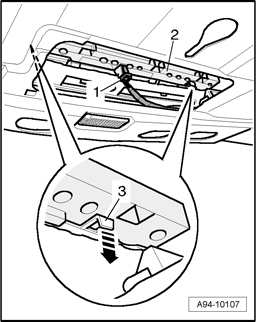

Fig 1: Identifying Electrical Connection, High-Mount Brake Lamp, And Retaining Clips

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical connection - 1 - at high-mount brake lamp - 2 -.
Release retaining clips - 3 - in direction of - arrow -.
Pull high-mount brake lamp downwards out of opening.

Installing

Install in reverse order of removal.
