Headlamps, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal, noting the following:

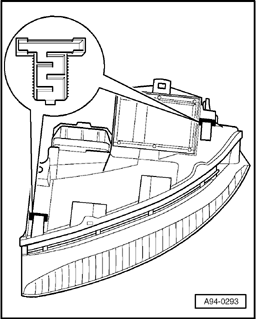

Fig 1: Locating Vent Elements On Underside Of Headlamp

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Check whether both vent elements have been inserted on underside of headlamp - detail -.
Slide headlamp horizontally onto lower headlamp mounting as far as it will go.

Fig 2: Locating Screws And Electrical Connection

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Position stop screw - 1 - so it makes contact with lock carrier.
Use stop screw to align headlamp with body contours (gap widths).

NOTE:

Pay attention to area around fender opening when aligning headlamp.
Tighten screws - 2... 5 -.
Following installation, check and adjust headlamps if necessary → 00 - TECHNICAL DATA .

Tightening torque

Component - fastener	Nm
Headlamp to lock carrier - screw	6
