Headlamps, removing and installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

Turn light switch to position "0".

CAUTION:

Switch off all electrical consumers.
Switch ignition off and remove ignition key.

Remove front bumper cover → 63 BUMPER .

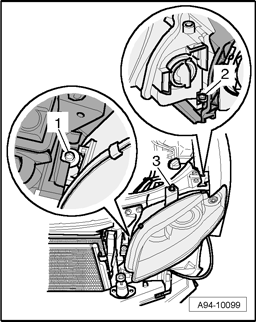

Fig 1: Locating Screws

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screw - 3 -.
Loosen screws - 1 - and - 2 - (do not remove).
Remove headlamp from body towards front.
Disconnect electrical connection.

Installing

Install in reverse order of removal, noting the following:

Fig 2: Checking Adjusting Nut Of Adjuster For Freedom Of Movement

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Check adjusting nut - 1 - of adjuster for freedom of movement - arrows -.
Screw in adjusting nut as far as it will go, but do not tighten.

Fig 3: Locating Screws

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert headlamp and tighten screws - 1... 3 - two complete turns.
Install front bumper cover → 63 BUMPER .
Align headlamp with body contours and front bumper cover (note gap widths).
Tighten screws in sequence - 2 - , - 1 - and - 3 -.

NOTE:

When screws are tightened the adjusting nut of the adjuster element automatically rotates against the mounting point of the headlamp housing and fixes it in place.
Check gaps; if necessary, repeat procedure for installing headlamp.
Following installation, check and adjust headlamps if necessary → 00 - TECHNICAL DATA .

Tightening torque

Component - fastener	Nm
Headlamp to lock carrier - screw	4.5
