Fog lamp housing - Audi RS4, removing and installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

Turn light switch to position "0".

CAUTION:

Switch off all electrical consumers.
Switch ignition off and remove ignition key.

Removing

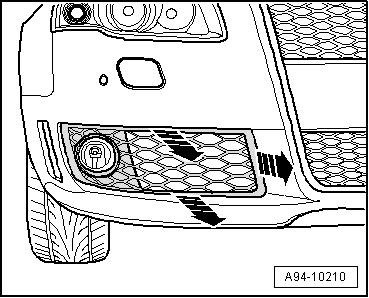

Fig 1: Pulling Off Air Inlet Grille In Lower Section Of Bumper Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull off air inlet grille in lower section of bumper cover - arrows -.

Fig 2: Identifying Screws For Fog Lamp Housing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screws - arrows -.
Disengage housing and remove from opening.
Disconnect electrical connection.

Installing

Install in reverse order of removal, noting the following:

First engage fog lamp housing on inner side of bumper cover.
Check and adjust fog lamps if necessary → 00 - TECHNICAL DATA .

Tightening torques

Component - fastener	Nm
Fog lamp housing to bumper cover - screw	6
